Behringer X Madi

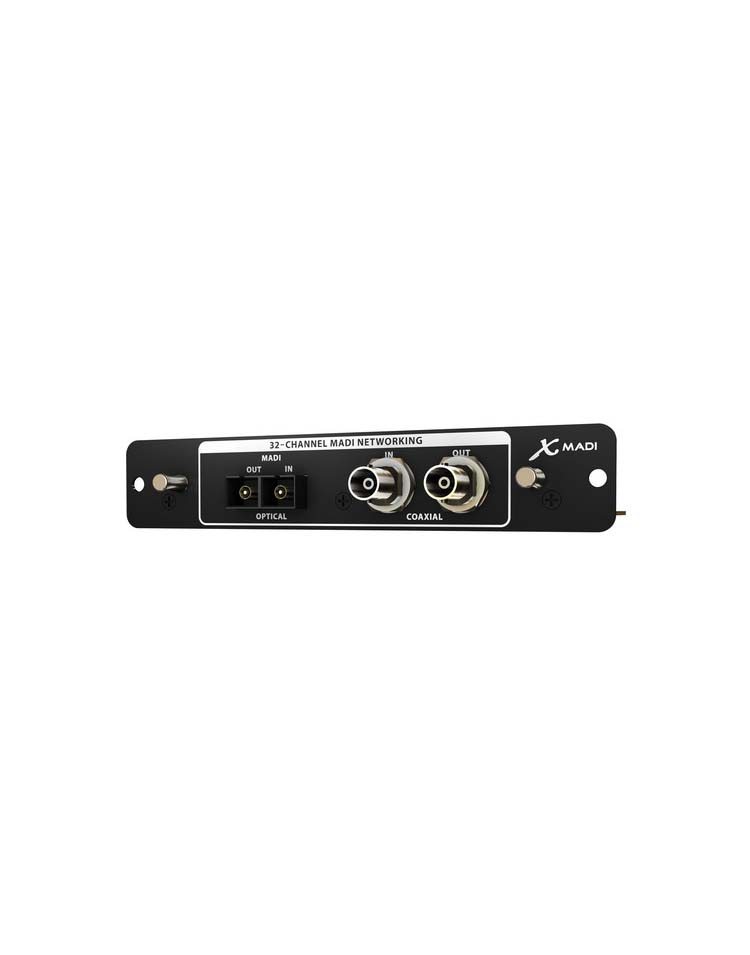

The Behringer X-MADI 32-Channel MADI Expansion Card for X32 Digital Mixing Console is designed to expand the recording capacities of the mixer through the MADI or AES10 protocol. The card plugs into the expansion port on the back of the mixer and provides 32 simultaneous bi-directional channels of I/O through two optical duplex SC-plugs (IEC874-19) or through two BNC terminals. The optical sc-plugs support multimode fiber optic cable lengths of up to 2 km and the BNC terminals support 75Ω coaxial cables up to 100 m. The BNC terminals can be used simultaneously with the optical SC-plugs as a redundant network for fiber optic installations.
